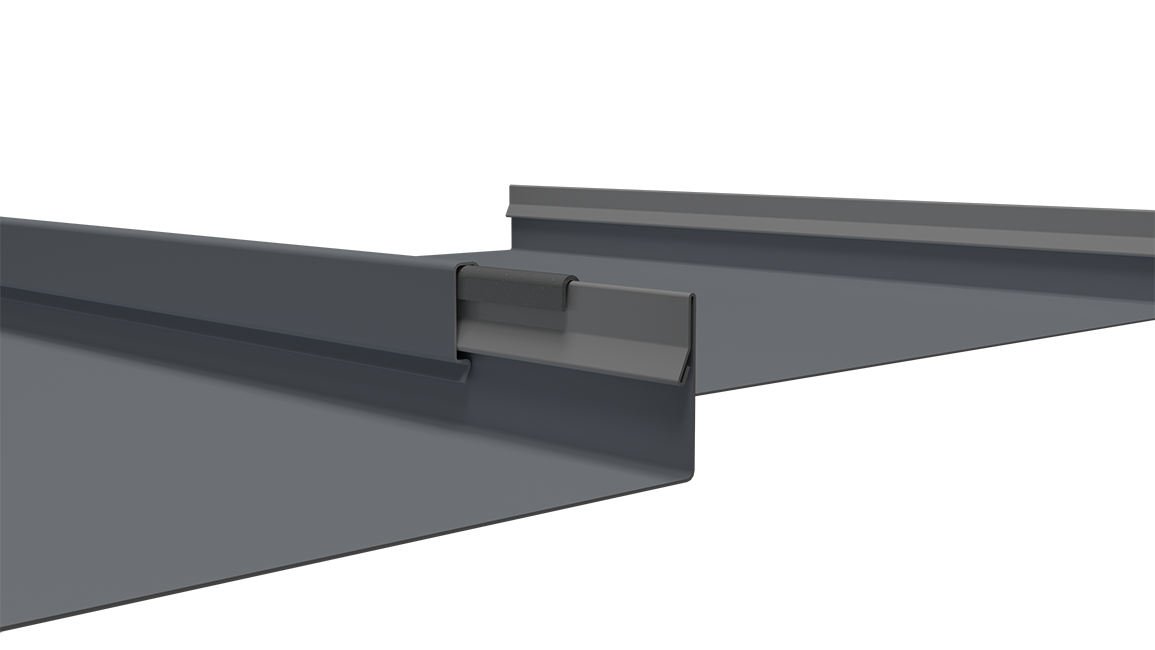

16” Flat Design Span® in ZACtique II, Lapped Connection with Clip
16” Flat Design Span® in ZACtique II, Lapped Connection with Clip

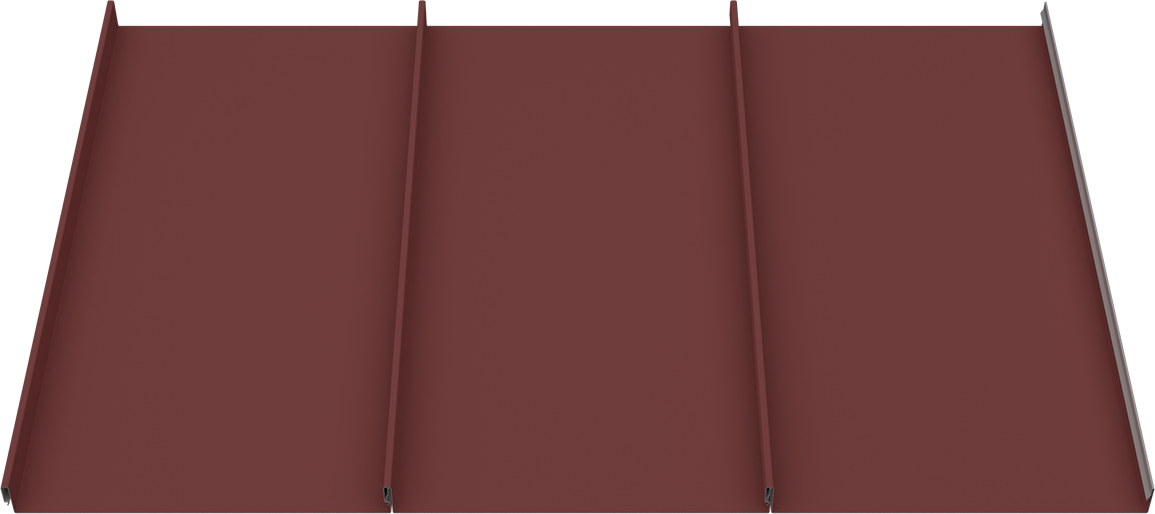

16” Flat Design Span® in Colonial Red, Three Panels Lapped

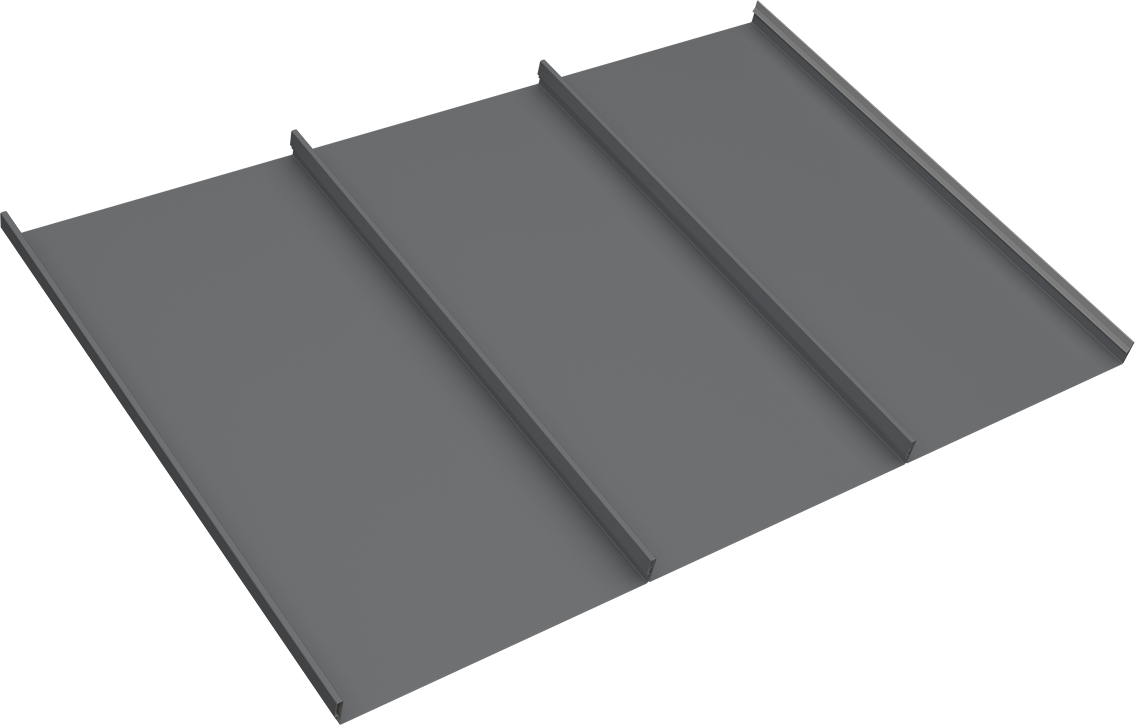

16” Flat Design Span® in ZACtique II, Three Panels Lapped
16” Flat Design Span® in ZACtique II, Lapped Connection with Clip
16” Flat Design Span® in ZACtique II, Lapped Connection with Clip
16” Flat Design Span® in Colonial Red, Three Panels Lapped
16” Flat Design Span® in ZACtique II, Three Panels Lapped

Design Span® hp Metal Roofing

Design Span® hp metal roofing is a performance-rated structural standing seam metal roof panel, perfect for residential, commercial, retail, civic, or multi-use building applications. This panel comes in several energy-efficient colors to meet just about any need or look.

Long-lasting, durable, and sustainable, Design Span hp is excellent as a roof over metal or wood decking, and as a fascia or mansard over plywood or supports. Design Span blends seamlessly with other traditional building materials to provide the perfect design flexibility for architects, as well as home and building owners.

Key Features

  • Now offering compatible S-5! Snow Retention Systems
  • Custom manufactured metal roof lengths: 5′-3″ to 45′-0″. (Lengths over 45′ available for an additional charge).
  • Wide batten cap available for a bold appearance.
  • Metal roof is acceptable for use in vertical metal siding applications.
  • Factory-applied sealant is a standard offer.

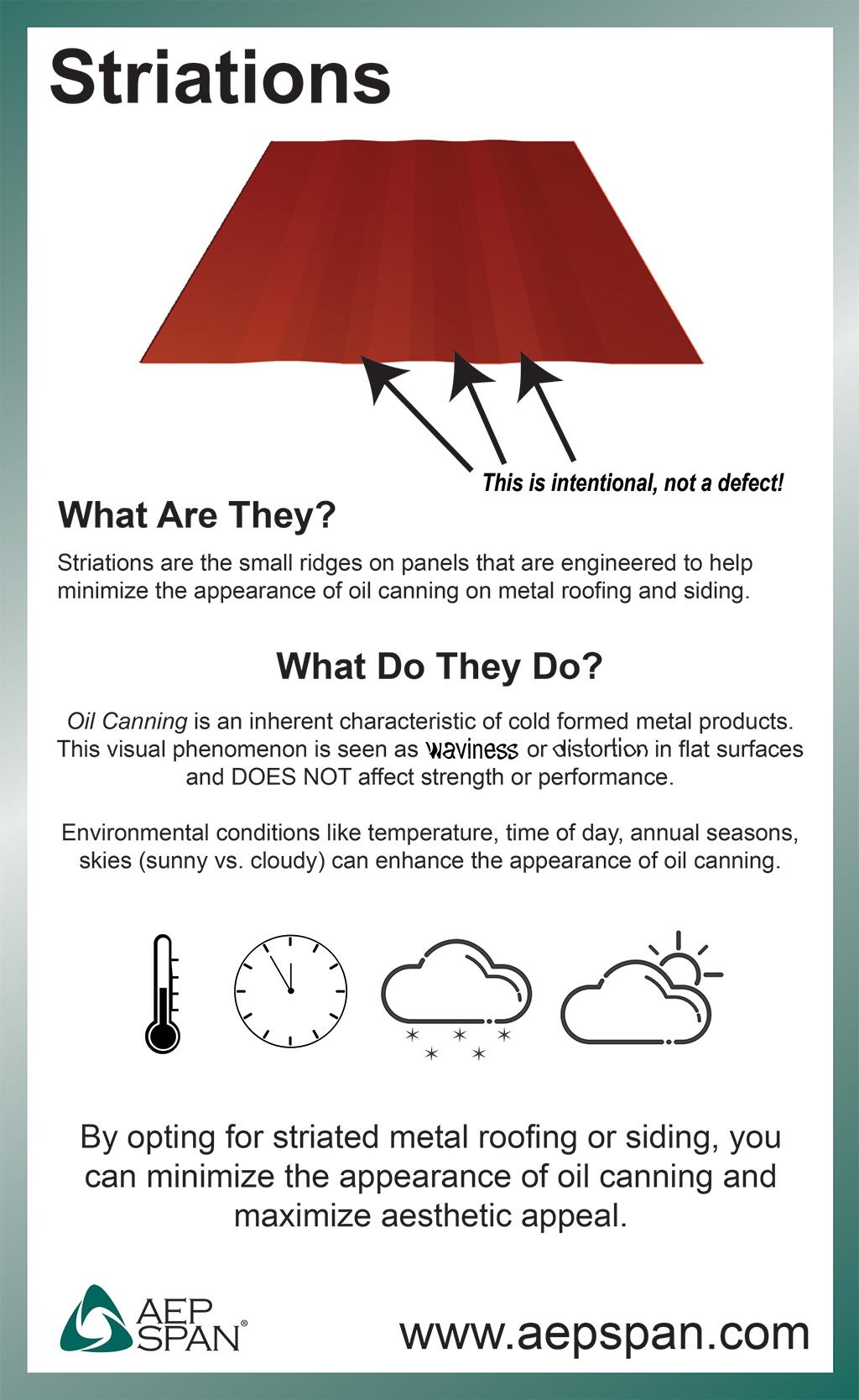

  • Subtle striations available on 16″, 17″ & 18″ sizes. (Click here to view an infographic explaining striations)
  • Factory notching available for turn under at the eave (some limitations apply). Notch provides a clean detail and reduction in labor.
  • Snap-together panel, no field seaming required.
Order Samples
Request Quote

Product Information

  • Panel Type: Concealed fastener metal roofing (standing seam)
  • Standard Base Metal: Zincalume® Steel (AZ50)
  • Coverage: 12″, 16″, 17″, 18″
  • Metal Thickness (Gauge): 24, 22
  • Minimum Slope: 2:12
  • Orientation: Vertical
  • Paint System: Dura Tech® 5000 / Dura Tech® mx (PVDF – 24, 22ga)
  • Panel Attachment: Snap Interlock with Concealed Clip
  • Performance Certification: UL 580 (Class 90 Wind Uplift), UL 790 (Class A Fire Rated), ASTM E1592 (Wind Uplift), ASTM E1680 (Air infiltration), ASTM E1646(Water Infiltration), UL2218 (Class 4 Impact Resistance – Hail), ER 309 Building Code Evaluation Report
  • Panel Height:  1 3/4″
  • Rib Style: Standing Seam
  • Primary Application: Commercial and Architectural Roofing
  • Standard Configuration: Striated
  • Factory Applied Sealant: Yes
  • Optional Configuration: Flat Pan
  • Available Panel Lengths: 5′-3″ to 45′-0″
  • Other Options (inquire): Wide Batten Cap, Factory Notching

Product Resources

  • Design Span® hp Product Sheet with Load Tables (pdf)
  • Design Span® hp Panel Dimensions (pdf)
  • Design Span® hp Installation Guide (pdf)
  • Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
  • Design Span® hp Guide Specifications (pdf)
  • Building Code Approval Report (Evaluation Report ER-0309)

Product Option and Accessory Resources

  • Fastener Selection Guide (pdf)
  • AEP Span Underlayment HT (pdf)
  • S-5! Snow Retention (pdf)

Color Resources

  • Architectural Color Chart (Dura Tech® 5000/mx) (pdf)
  • Color Performance Data (SRI and LRV Values) (pdf)

Sustainability Resources

  • Standard Offer EPD (pdf)
  • Domestically Sourced High Recycled Content EPD (pdf)
  • HPD 3rd-Party Verified for ZINCALUME® Plus coated products (pdf)
  • Complete AEP Span Material Library(zip)
  • Complete AEP Span Material Image Files(zip)
  • Design Span® hp Revit (zip)
  • Design Span® hp AutoCAD (zip)
  • Miscellaneous AutoCAD Details (zip)
  • Finish Warranty PVDF Paint System – Dura Tech® 5000 & Dura Tech® mx Warranty (pdf)
  • Corrosion Warranty – ZINCALUME® Plus Warranty (pdf)
  • Full System Weathertight Warranty Available By Request (Sample Warranty | Inquire)
