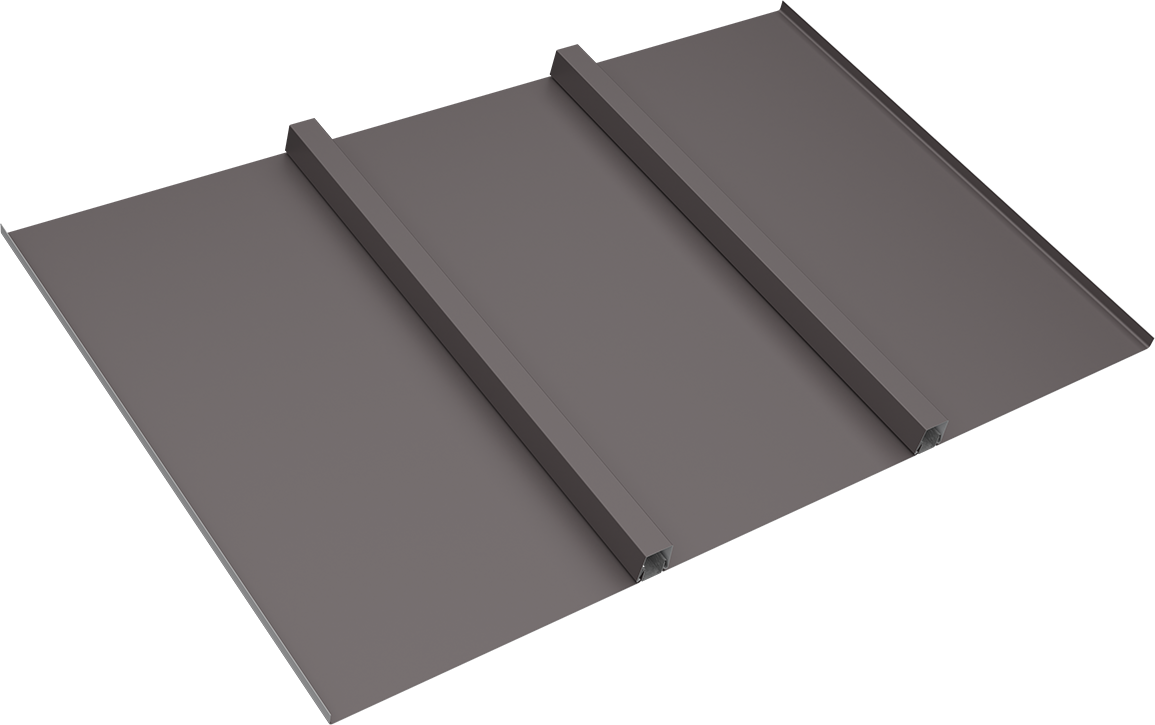

Select Seam® Wide Batten Metal Roofing is a performance-rated, non-structural concealed fastener panel in 13 1⁄4″, 17 1⁄4″ & 22 1⁄2” coverages. The standing seam panel has a wide batten attachment with a 1 7⁄8” panel height that provides a distinctive look for commercial and architectural roofing applications. The panel is available as a flat pan or striated option.
Product Information
Product Details
Documents & Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal roofing (standing seam)
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 13 1⁄4″, 17 1⁄4″, 22 1⁄2“
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: 3:12
- Orientation: Vertical
- Paint System: Dura Tech® 5000 / Dura Tech® mx (PVDF – 24, 22ga)

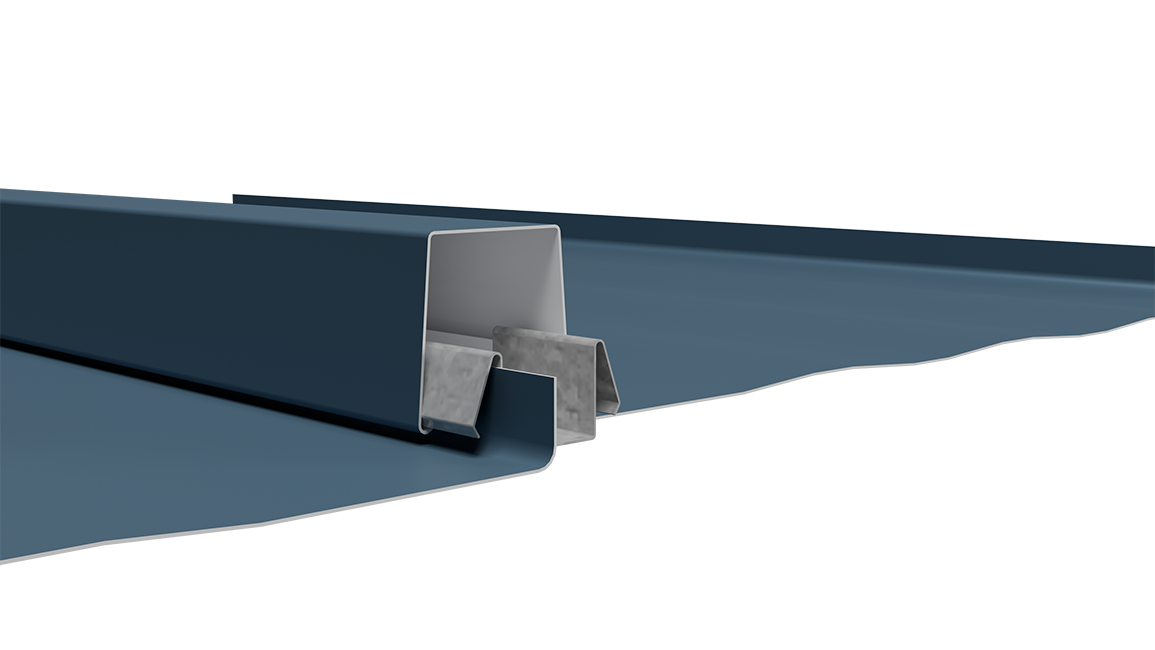

- Panel Attachment: Concealed Clip
- Performance Certification: UL 580 (Class 90 Wind Uplift), ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration – with sealant), ER 309 Building Code Evaluation Report
- Panel Height: 1 7⁄8“
- Rib Style: Standing Seam
- Primary Application: Commercial and Architectural Roofing
- Standard Configuration: Striated
- Factory Applied Sealant: Yes
- Optional Configuration: Flat
- Available Panel Lengths: 5′-0″ to 45′-0″
- Other Options (inquire): Direct Fastened or Clip Attached
- Panel Variations: Stucco Embossed
Documents & Resources
Product Resources
- Select Seam® Product Sheet with Load Tables (pdf)
- Select Seam® Wide Batten Panel Dimensions (pdf)
- Select Seam® Wide Batten Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Select Seam® Guide Specifications (pdf)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech® 5000/mx) (pdf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal roofing (standing seam)
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 13 1⁄4″, 17 1⁄4″, 22 1⁄2“
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: 3:12
- Orientation: Vertical
- Paint System: Dura Tech® 5000 / Dura Tech® mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Clip
- Performance Certification: UL 580 (Class 90 Wind Uplift), ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration – with sealant), ER 309 Building Code Evaluation Report
- Panel Height: 1 7⁄8“
- Rib Style: Standing Seam
- Primary Application: Commercial and Architectural Roofing
- Standard Configuration: Striated
- Factory Applied Sealant: Yes
- Optional Configuration: Flat
- Available Panel Lengths: 5′-0″ to 45′-0″
- Other Options (inquire): Direct Fastened or Clip Attached
- Panel Variations: Stucco Embossed
Documents & Resources
Product Resources
- Select Seam® Product Sheet with Load Tables (pdf)
- Select Seam® Wide Batten Panel Dimensions (pdf)
- Select Seam® Wide Batten Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Select Seam® Guide Specifications (pdf)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech® 5000/mx) (pdf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM Data
Colors
Cool DURA TECH® 5000
Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.
Cool DURA TECH® mx
Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.
Cool DURA TECH® nt
Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.
No available colors in this category.
Premium Colors
Unpainted Products
Uncoated and Unpainted Products
No available colors in this category.
Specialty Finishes and Custom Colors
AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.
