HR-36® in Silversmith

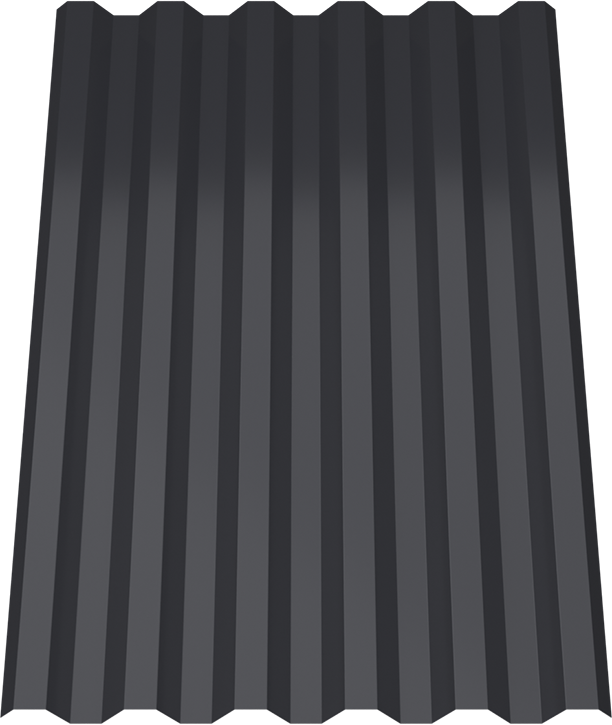

HR-36® in Slate Gray

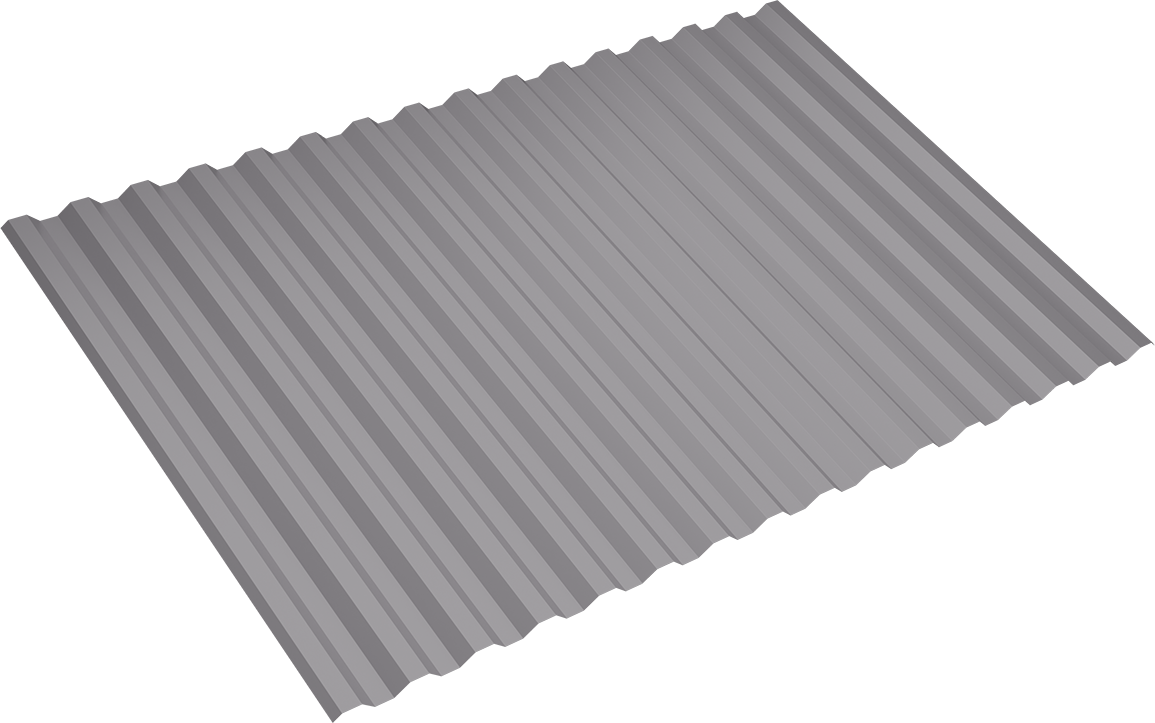

HR-36® in Silversmith, Three Panels Lapped (Note: No Fasteners Shown)

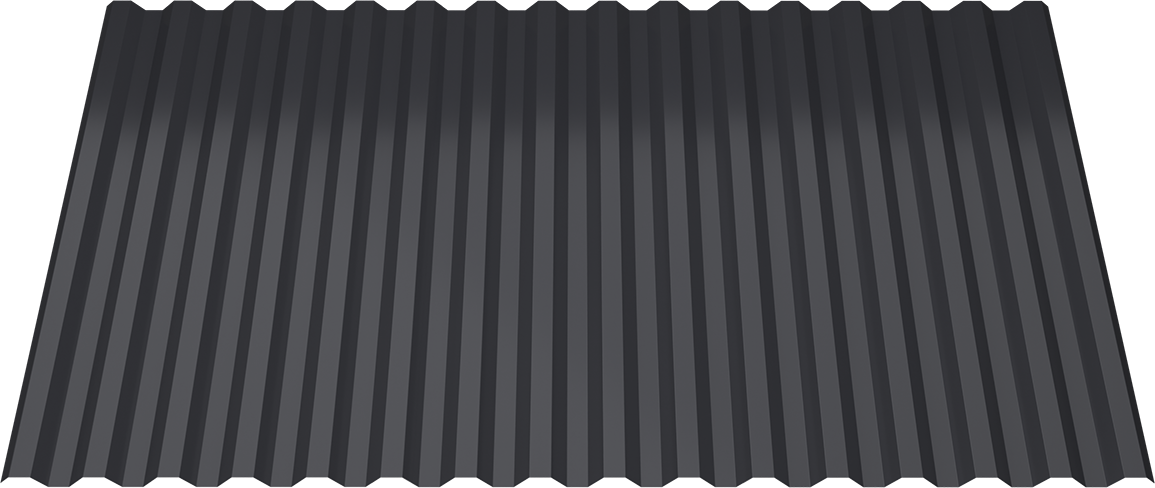

HR-36® in Slate Gray, Three Panels Lapped (Note: No Fasteners Shown)
HR-36® in Silversmith
HR-36® in Slate Gray
HR-36® in Silversmith, Three Panels Lapped (Note: No Fasteners Shown)
HR-36® in Slate Gray, Three Panels Lapped (Note: No Fasteners Shown)

HR-36® Metal Roofing and Siding

HR-36® metal roofing & siding is an exposed fastener panel with 36″ coverage. The trapezoidal style and 1 1⁄2” panel height make it suitable for commercial, architectural, and industrial applications, including wainscoting applications. The panel is also available in a reversed form for metal siding applications.

Now offering compatible S-5! Snow Retention Systems

Order Samples
Request Quote

Product Information

  • Panel Type: Exposed fastener metal roofing or siding
  • Standard Base Metal: Zincalume® Steel (AZ50)
  • Coverage: 36″
  • Metal Thickness (Gauge): 26, 24, 22, 20
  • Minimum Slope: 1:12
  • Orientation: Horizontal or Vertical
  • Paint System: Dura Tech® nt (SMP – 26ga), Dura Tech®5000 / Dura Tech® mx (PVDF – 24, 22ga)
  • Panel Attachment: Exposed Screw
  • Performance Certification: ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), UL 263 (Fire Resistance), UL 790 (Class A Fire Rated), ER 550 Building Code Evaluation Report
  • Panel Height: 1 1⁄2“
  • Rib Style: Trapezoidal
  • Primary Application: Commercial and Industrial Siding
  • Standard Configuration: As shown
  • Factory Applied Sealant: No
  • Optional Configuration: Reversed
  • Available Panel Lengths: 6′-0″ to 50′-0″
  • Other Options (inquire): Perforation, Crimp Curving, Stucco Embossed, Aluminum .040″ or .032″ substrate

  • Product Resources

    • HR-36® Product Sheet with Load Tables (pdf)
    • HR-36® Panel Dimensions (pdf)
    • HR-36® Installation Guide (pdf)
    • Commercial and Industrial Trim and Flashing Guide (pdf)
    • Commercial and Industrial Trim and Flashing Details (pdf)
    • Commercial and Industrial Guide Specifications (pdf)
    • Building Code Approval Report (Evaluation Report ER-0550)

    Product Option and Accessory Resources

    • Perforation Data Sheet (pdf)
    • Aluminum Product Sheet (pdf)
    • Fastener Selection Guide (pdf)
    • AEP Span Underlayment HT (pdf)
    • Polycarbonate Skylight Panels (pdf)
    • S-5! Snow Retention (pdf)

    Color Resources

    • Architectural Color Chart (Dura Tech® 5000/mx) (pdf)
    • Commercial and Industrial Color Chart (Dura Tech® nt) (pdf)
    • Color Performance Data (SRI and LRV Values) (pdf)

    Sustainability Resources

    • Standard Offer EPD (pdf)
    • Domestically Sourced High Recycled Content EPD (pdf)
    • HPD 3rd-Party Verified for ZINCALUME® Plus coated products (pdf)
  • Complete AEP Span Material Library(zip)
  • Complete AEP Span Material Image Files(zip)
  • HR-36® Revit (zip)
  • HR-36® AutoCAD (zip)
  • Miscellaneous AutoCAD Details (zip)
  • Finish Warranty PVDF Paint System – Dura Tech® 5000 & Dura Tech® mx Warranty (pdf)
  • Finish Warranty SMP Paint System – Dura Tech® nt Warranty (pdf)
  • Corrosion Warranty – ZINCALUME® Plus Warranty (pdf)

Cool DURA TECH® 5000
Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.

Regal White

Parchment

Sierra Tan

Walnut

Weathered Copper

Dark Bronze

Terra-Cotta

Colonial Red

Old Town Gray

Zinc Gray

Slate Gray

Midnight Bronze

Matte Black

Tahoe Blue

Regal Blue

Leaf Green

Forest Green

Cool DURA TECH® mx

Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.

Metallic Silver

ZACtique® II

Metallic Champagne

Metallic Copper

Cool DURA TECH® nt

Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.

Winter White
Surf White
Light Stone
Desert Beige
Chestnut Brown
Rustic Red
Denali Green
Tahoe Blue
Weathered Copper
Old Town Gray

Premium Colors

Natural Rust

Vintage®

Unpainted Products

ZINCALUME® Plus

Uncoated and Unpainted Products

No available colors in this category.

Specialty Finishes and Custom Colors

AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.

Specialty Finishes Catalog
Custom Color Inquiry
